For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irrigation.
Maximum fluid temperature up to +40℃.
Maximum sand content:0.25%.
Rewindable motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
Special mechanical seal
Other voltages or frequency 60 Hz
(according to our general sales conditions).

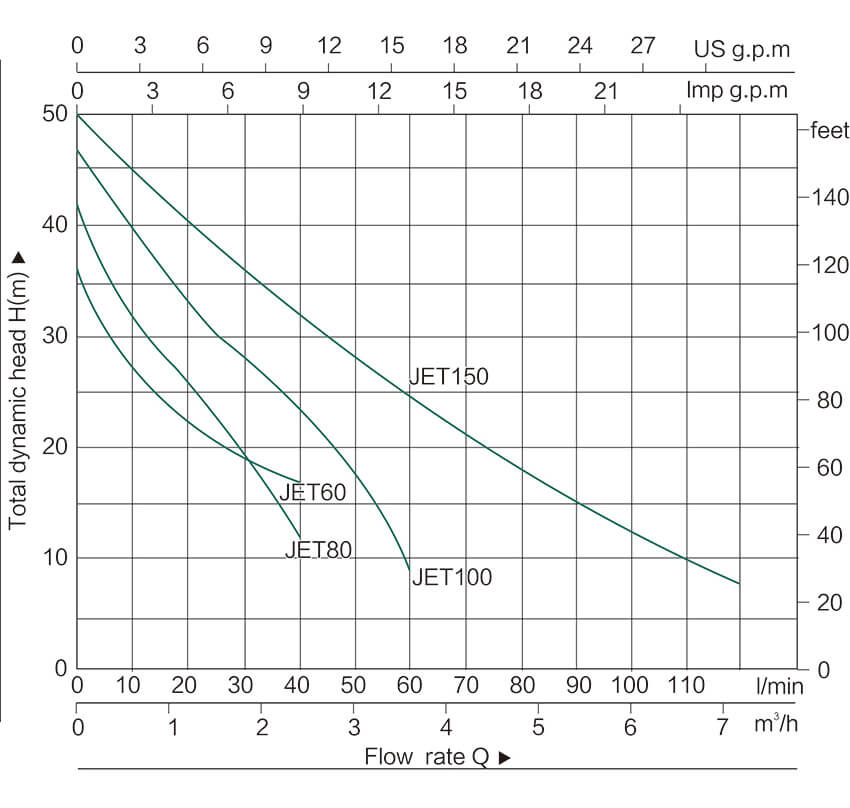

| MODEL | P₂ | DELIVERY n≈2850r/min | |||||||||
| 1~220V/240V | KW | HP | Q(m³/h) | 0 | 0.6 | 1.2 | 2.4 | 3.6 | 4.8 | 6.0 | 7.2 |
| Q(l/min) | 0 | 10 | 20 | 40 | 60 | 80 | 100 | 120 | |||
| JET60 | 0.37 | 0.5 | H(m) | 36 | 26 | 20 | 7 | - | - | - | - |
| JET80 | 0.55 | 0.75 | 42 | 32 | 26 | 12 | - | - | - | - | |
| JET100 | 0.75 | 1.0 | 47 | 38 | 32 | 24 | 9 | - | - | - | |
| JET150 | 1.1 | 1.5 | 50 | 45 | 40 | 32 | 21 | 15 | 10 | 8 | |

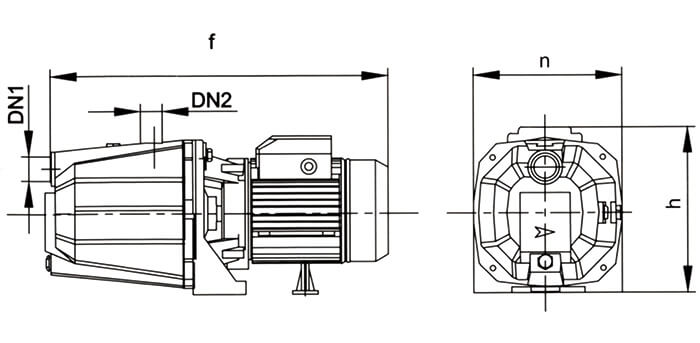

| MODEL | DN1 | DN2 | DIMENSIONS(mm) | ||
| n | h | f | |||
| JET60 | 1" | 1" | 173 | 198 | 402 |
| JET80 | 1" | 1" | 180 | 203 | 420 |
| JET100 | 1" | 1" | 180 | 203 | 420 |
| JET150 | 1¼" | 1" | 216 | 215 | 440 |

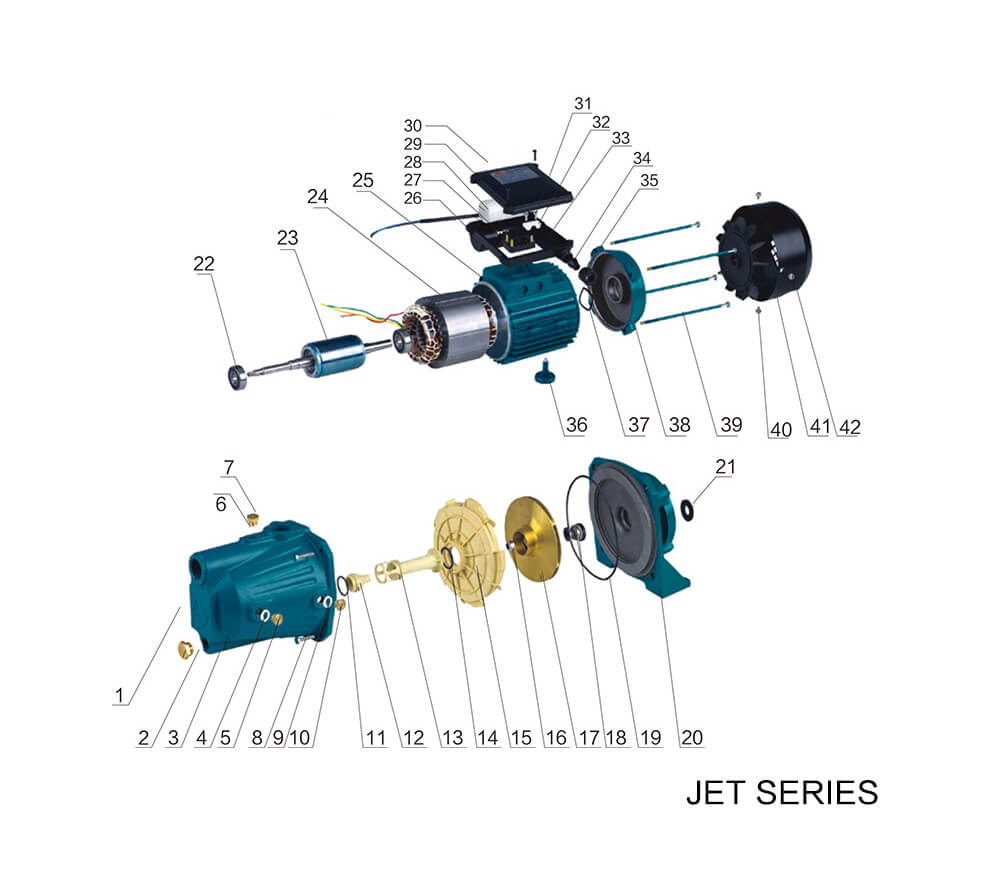

| NO. | DESCRIPTION | NO. | DESCRIPTION |
| 1 | Drain Plug | 22 | Pump Side Ball Bearing |
| 2 | "O"ring For Drain Plug | 23 | Shaft And Rotor |
| 3 | Pump Body | 24 | Stator |
| 4 | "O"ring For Gauge Plug | 25 | Motor Case |
| 5 | Gauge Plug | 26 | Capacitor Holding Box |
| 6 | "O"ring For Filling Plug | 17 | Washer For Terminal Board |
| 7 | Filling Plug | 28 | Capacitor |
| 8 | Screw For Pump Body | 29 | Terminal Cover |
| 9 | "O"ring For Switch Plug | 30 | Screw For Terminal Box Fixing |
| 10 | Switch Plug | 31 | Screw For Cable Presser |
| 11 | "O"ring For Nozzle | 32 | Cable Presser |
| 12 | Nozzle | 33 | Terminal Board |
| 13 | Venturi | 34 | Outlet Hole |
| 14 | "O"ring For Diffuser | 35 | Waterproof Fairlead |
| 15 | Diffuser | 36 | Foot |
| 16 | Impeller Stop Nut | 37 | Adjustingring |
| 17 | Impeller | 38 | Motor Cover |
| 18 | Mechnical Seal | 39 | Motor Tie-rod |
| 19 | "O"ring For Pump Body | 40 | Fan |
| 20 | Motor Bracket | 41 | Fan Cover |
| 21 | Splash Guard | 42 | Screw For Fan Cover |
