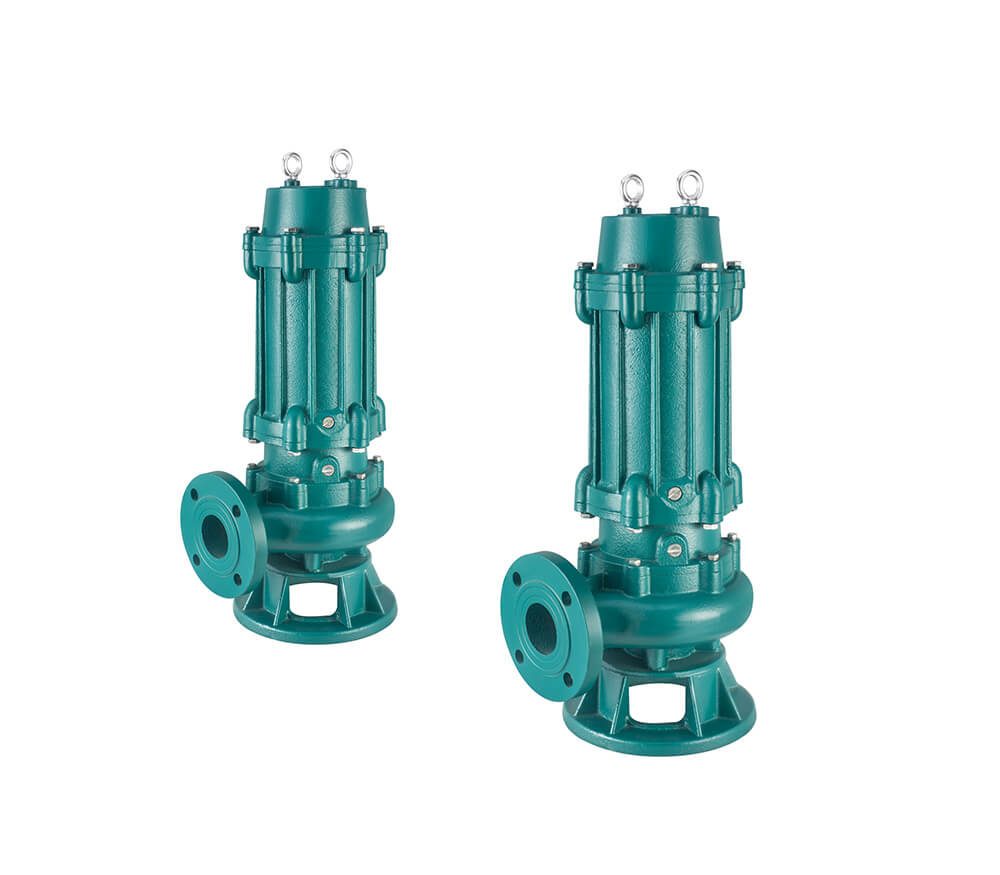

WQ
Submersible Sewage Pumps

Application

For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irrigation.

Operating conditions

Maximum fluid temperature up to +40℃.
Maximum sand content:0.25%.

Motor and Pump

Rewindable motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz

Options on request

Special mechanical seal
Other voltages or frequency 60 Hz

Warranty:1 year

(according to our general sales conditions).

Parameter

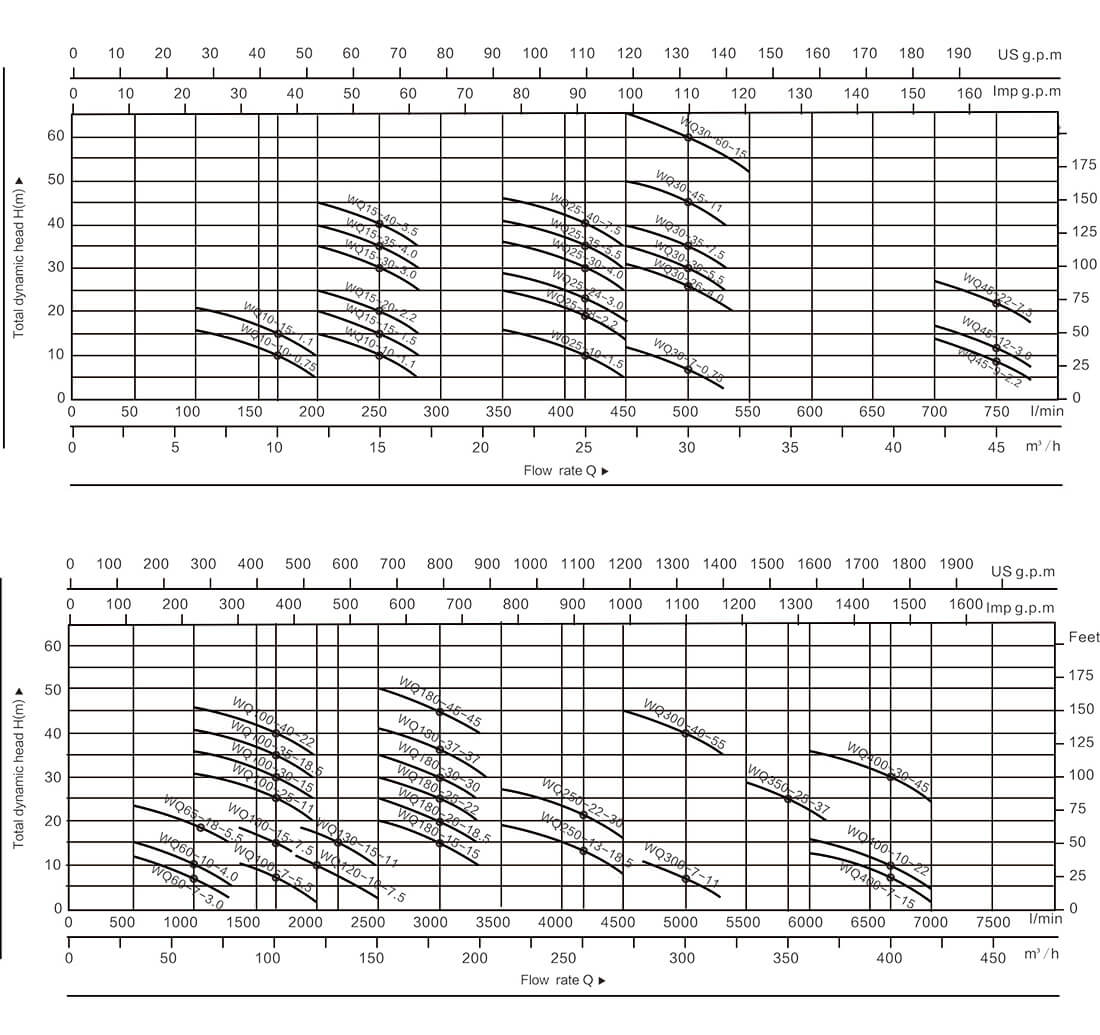

Chart
Dimensions
Structure

PERFORMANCE DATA

MODEL Flow
(m³/h)		 Head
(m)		 Power
(W)		 Voltage
(V)		 Rotary velocity
(r/min)		 Caliber
(mm)		 Efficiency
(%)		 Automatic
coupler
WQ10-10-0.75 10 10 0.75 220/380 2850 50 45 GAK-50
WQ10-15-1.1 10 15 1.1 220/380 2850 50 48
WQ15-15-1.5 15 15 1.5 380 2850 50 50
WQ15-20-2.2 15 20 2.2 380 2850 50 54
WQ15-30-3.0 15 30 3.0 380 2850 50 58
WQ15-35-4.0 15 35 4.0 380 2850 50 60
WQ15-40-5.5 15 40 5.5 380 2850 50 63
WQ25-40-7.5 25 40 7.5 380 2850 50 65
WQ15-10-1.1 15 10 1.1 220/380 2850 65 48 GAK-65
WQ25-10-1.5 25 10 1.5 380 2850 65 50
WQ25-18-2.2 25 18 2.2 380 2850 65 54
WQ25-24-3.0 25 24 3.0 380 2850 65 58
WQ25-30-4.0 25 30 4.0 380 2850 65 60
WQ25-35-5.5 25 35 5.5 380 2850 65 63
WQ30-35-7.5 30 35 7.5 380 2850 65 65
WQ30-7-0.75 30 7 0.75 220/380 2850 80 45 GAK-80
WQ45-9-2.2 45 9 2.2 380 2850 80 54
WQ45-12-3.0 45 12 3.0 380 2850 80 58
WQ30-26-4.0 30 26 4.0 380 2850 80 60
WQ30-30-5.5 30 30 5.5 380 2850 80 63
WQ45-22-7.5 45 22 7.5 380 2850 80 65
WQ30-45-11 30 45 11 380 2850 80 67
WQ30-60-15 30 60 15 380 2850 80 71
WQ60-7-3.0 60 7 3.0 380 2850 100 58 GAK-100
WQ60-10-4.0 60 10 4.0 380 2850 100 60
WQ65-18-5.5 65 18 5.5 380 2850 100 63
WQ100-15-7.5 100 15 7.5 380 2850 100 65
WQ100-25-11 100 25 11 380 2850 100 67
WQ100-30-15 100 30 15 380 2850 100 71
WQ100-35-18.5 100 35 18.5 380 2850 100 73
WQ100-40-22 100 40 22 380 2850 100 75
WQ100-7-5.5 100 7 5.5 380 2850 150 63 GAK-150
WQ120-10-7.5 120 10 7.5 380 2850 150 65
WQ130-15-11 130 15 11 380 2850 150 67
WQ180-15-15 180 15 15 380 2850 150 71
WQ180-20-18.5 180 20 18.5 380 2850 150 75
WQ180-25-22 180 25 22 380 2850 150 76
WQ180-30-30 180 30 30 380 2850 150 78
WQ180-37-37 180 37 37 380 2850 150 79
WQ180-45-45 180 45 45 380 2850 150 81
WQ300-7-11 300 7 11 380 2850 200 67 GAK-200
WQ400-7-15 400 7 15 380 2850 200 71
WQ250-13-18.5 250 13 18.5 380 2850 200 75
WQ400-10-22 400 10 22 380 2850 200 76
WQ250-22-30 250 22 30 380 2850 200 78
WQ350-25-37 350 25 37 380 2850 200 79
WQ400-30-45 400 30 45 380 2850 200 81
WQ300-40-55 300 40 55 380 2850 200 83
