For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irrigation.
Maximum fluid temperature up to +40℃.
Maximum sand content:0.25%.
Rewindable motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
Special mechanical seal
Other voltages or frequency 60 Hz
(according to our general sales conditions).

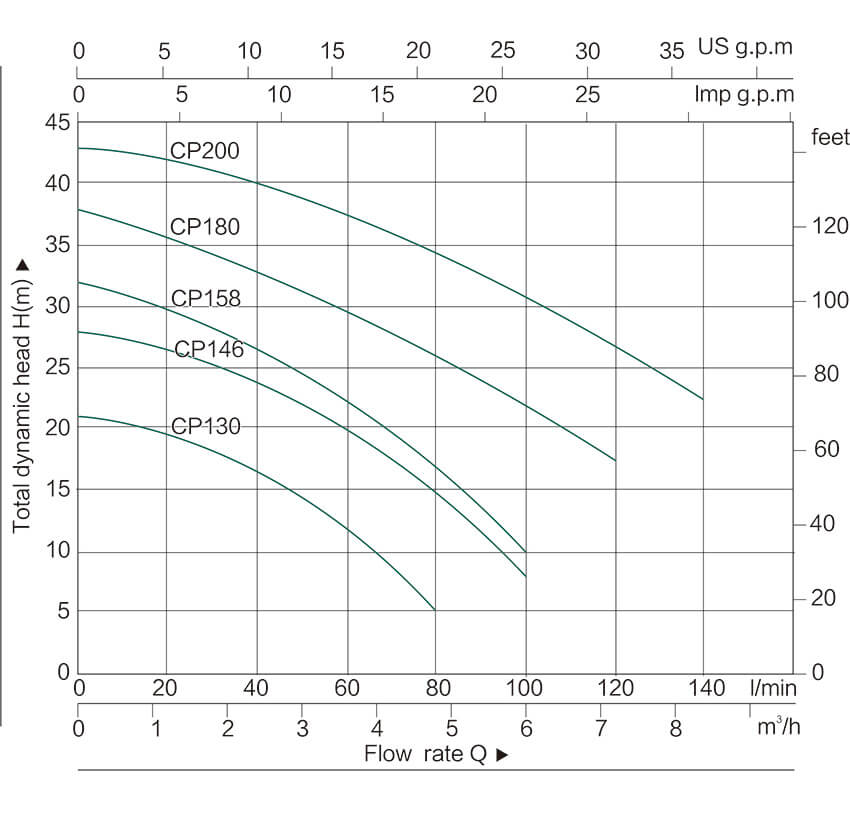

| MODEL | P₂ | DELIVERY n≈2850r/min | ||||||||||
| 1~220V/240V | 3~380V/415V | KW | HP | Q(m³/h) | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 7.2 | 8.4 |
| Q(l/min) | 0 | 20 | 40 | 60 | 80 | 100 | 120 | 140 | ||||
| CPm130 | CP130 | 0.37 | 0.5 | H(m) | 21 | 19 | 16 | 11 | 5 | - | - | - |
| CPm146 | CP146 | 0.55 | 0.75 | 28 | 26 | 24 | 20 | 15 | 8 | - | - | |
| CPm158 | CP158 | 0.75 | 1 | 32 | 29 | 26 | 22 | 16 | 10 | - | - | |
| CPm180 | CP180 | 1.1 | 1.5 | 38 | 36 | 33 | 28 | 26 | 22 | 17 | - | |
| CPm200 | CP₂00 | 1.5 | 2 | 43 | 42 | 40 | 38 | 35 | 31 | 27 | 22 | |

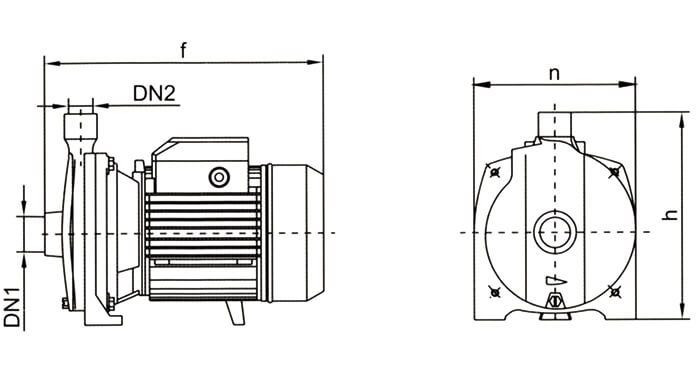

| MODEL | DN1 | DN2 | DIMENSIONS(mm) | ||
| n | h | f | |||
| CPm130 | 1" | 1" | 165 | 211 | 259 |
| CPm146 | 1" | 1" | 190 | 242 | 298 |
| CPm158 | 1" | 1" | 190 | 242 | 298 |
| CPm180 | 1¼" | 1" | 242 | 260 | 341 |
| CPm200 | 1¼" | 1" | 242 | 290 | 358 |

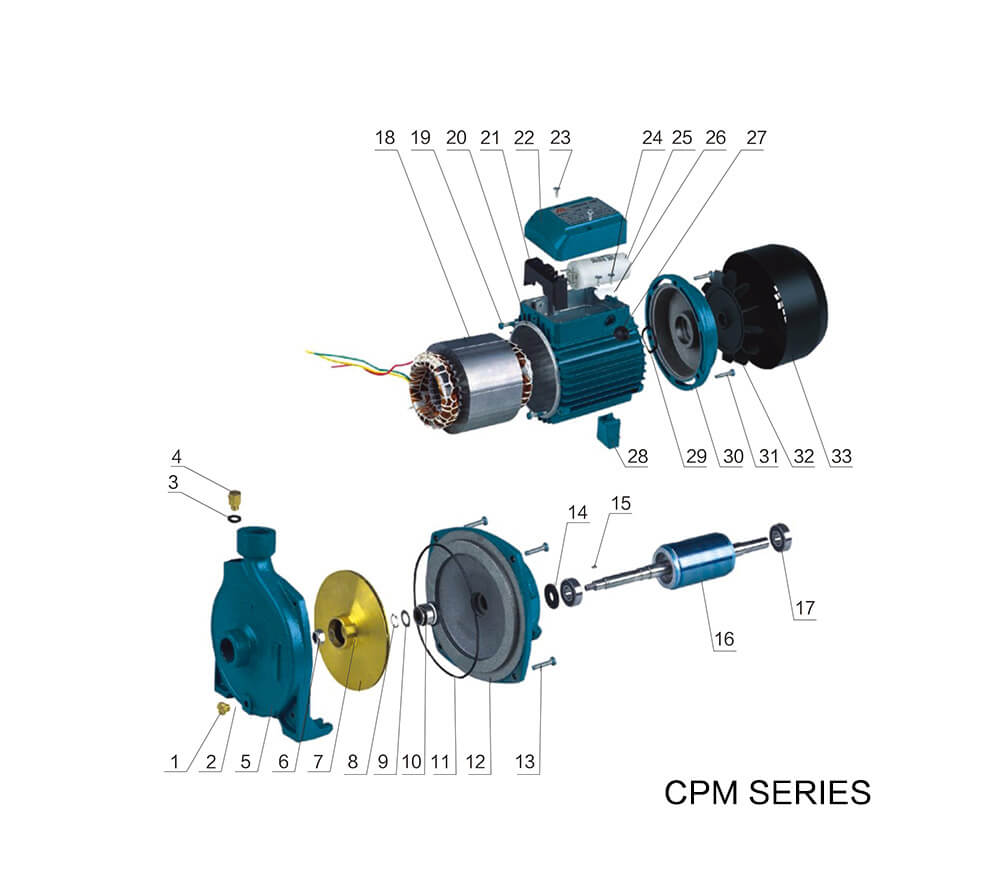

| NO. | DESCRIPTION | NO. | DESCRIPTION |
| 1 | Drain Plug | 18 | Stator |
| 2 | "O"ring For Drain Plug | 19 | Motor Bracket-motor Case Screw |
| 3 | "O"ring For Filling Plug | 20 | Motor Case |
| 4 | Filling Plug | 21 | Terminal Board |
| 5 | Pump Body | 22 | Terminal Cover |
| 6 | Nut For Impeller/impeller Stop Nut | 23 | Screw For Terminal Box Fixing |
| 7 | Impeller | 24 | Screw For Cable Presser |
| 8 | Snap Ring | 25 | Capacitor |
| 9 | Plain Washer | 26 | Cable Presser |
| 10 | Mechanical Seal | 27 | Water Proof Fairlead |
| 11 | "O"Ring For Pump Body | 28 | Foot |
| 12 | Motor Bracket | 29 | Adjusting Ring |
| 13 | Motor Bracket-pump Body Screw | 30 | Motor Cover |
| 14 | Splash Guard | 31 | Motor Cover-motor Case Screw |
| 15 | Key | 32 | Fan |
| 16 | Shuft And Rotor | 33 | Fan Cover |
| 17 | Ball Bearing |
