For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irrigation.
Maximum fluid temperature up to +40℃.
Maximum sand content:0.25%.
Rewindable motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
Special mechanical seal
Other voltages or frequency 60 Hz
(according to our general sales conditions).

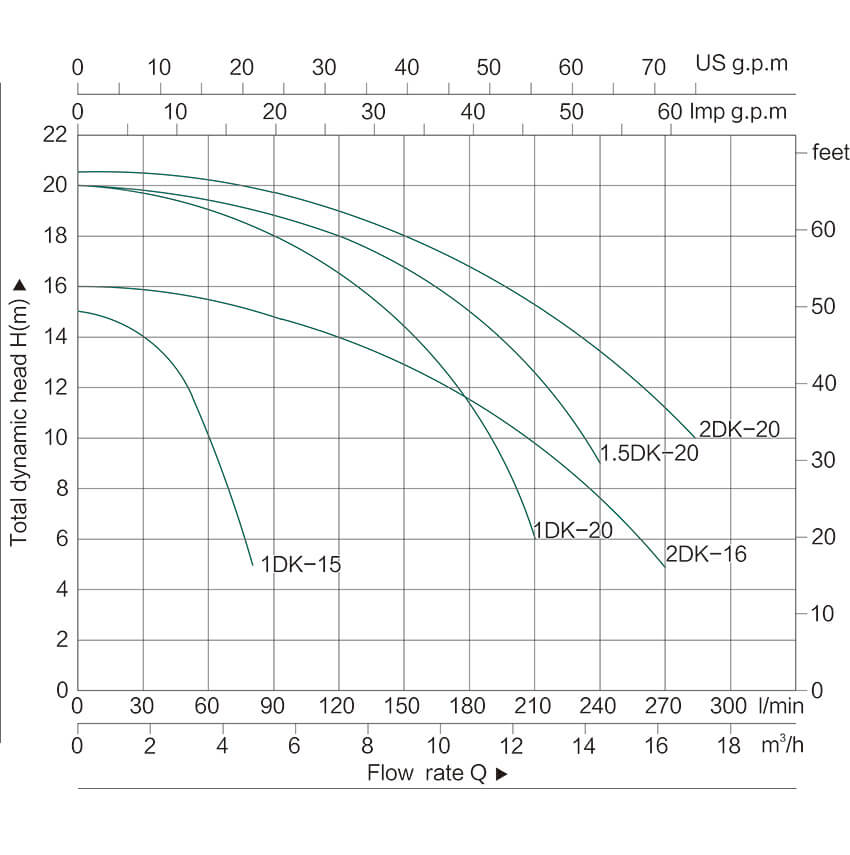

| MODEL | P₂ | DELIVERY n≈2850r/min | ||||||||||||
| 1~220V/240V | 3~380V/415V | KW | HP | Q(m³/h) | 0 | 1.2 | 2.4 | 4.8 | 7.2 | 9.0 | 10.8 | 12.6 | 14.4 | 16.2 |
| Q(l/min) | 0 | 20 | 40 | 60 | 120 | 150 | 180 | 210 | 240 | 270 | ||||
| 1DK-15 | - | 0.37 | 0.5 | H(m) | 15 | 14 | 10 | 5 | - | - | - | - | - | - |
| 1DK-20 | - | 0.55 | 0.75 | 20 | 19 | 18 | 17 | 16.5 | 14.4 | 11.3 | 6 | - | - | |
| 1.5DK-20 | 1.5DK-20 | 0.75 | 1.0 | 20 | 19.2 | 18.3 | 17.5 | 16.8 | 15 | 11.5 | 12.6 | 9 | - | |
| 2DK-16 | 2DK-16 | 1.1 | 1.5 | 16 | 15.5 | 15 | 14.5 | 14 | 13 | 11.5 | 9.8 | 7.6 | 4.5 | |
| 2DK-20 | 2DK-20 | 1.5 | 2.2 | 21 | 20.5 | 20 | 19.5 | 19 | 18 | 16.8 | 15.2 | 13.4 | 10 | |

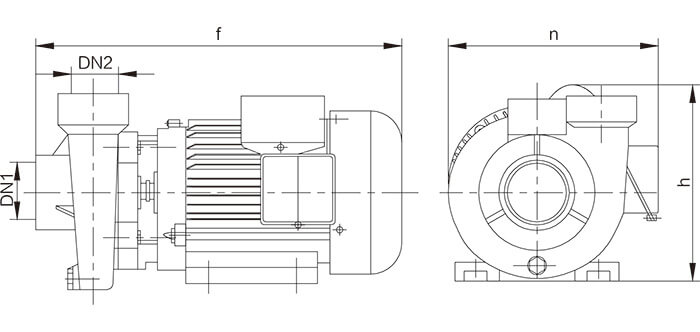

| MODEL | DN1 | DN2 | DIMENSIONS(mm) | ||
| n | h | f | |||
| 1DK-15 | 1" | 1" | 148 | 172 | 260 |
| 1DK-20 | 1" | 1" | 168 | 190 | 298 |
| 1.5DK-20 | 1½" | 1½" | 168 | 190 | 298 |
| 2DK-16 | 2" | 2" | 185 | 200 | 360 |
| 2DK-20 | 2" | 2" | 185 | 207 | 360 |
