For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irrigation.
Maximum fluid temperature up to +40℃.
Maximum sand content:0.25%.
Rewindable motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
Special mechanical seal
Other voltages or frequency 60 Hz
(according to our general sales conditions).

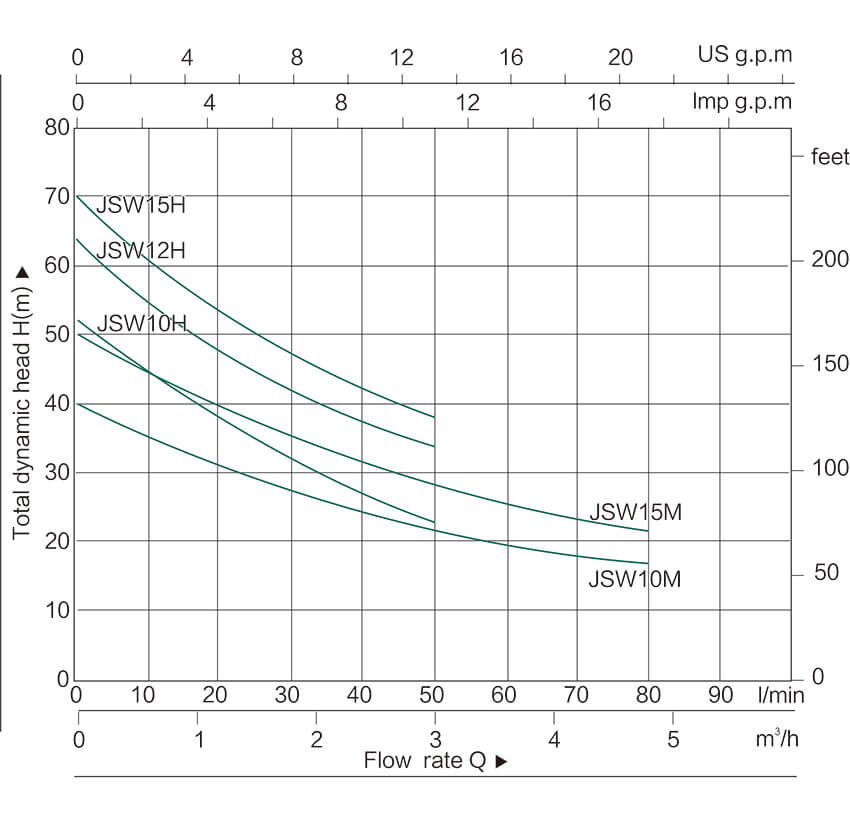

| MODEL | P₂ | DELIVERY n≈2850r/min | |||||||||||
| 1~220V/240V | 3~380V/415V | KW | HP | Q(m³/h) | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 |
| Q(l/min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | ||||
| JSWm10H | JSW10H | 0.75 | 1 | H(m) | 52 | 44 | 37 | 31.5 | 27 | 23 | - | - | - |
| JSWm12H | JSW12H | 0.9 | 1.25 | 64 | 55.5 | 48.5 | 42.5 | 37.5 | 34 | - | - | - | |
| JSWm15H | JSW15H | 1.1 | 1.5 | 70 | 62 | 54.5 | 48 | 42.5 | 38 | - | - | - | |
| JSWm10M | JSW10M | 0.75 | 1 | 40 | 35 | 31 | 27.4 | 24.2 | 21.6 | 19.5 | 18 | 17 | |
| JSWm15M | JSW15M | 1.1 | 1.5 | 50 | 45 | 40.3 | 36 | 32 | 28.5 | 25 | 22.6 | 21 | |

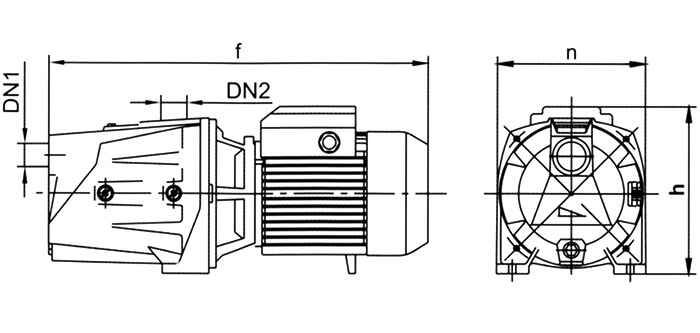

| MODEL | DN1 | DN2 | DIMENSIONS(mm) | ||
| n | h | f | |||
| JSWm10H | 1" | 1" | 190 | 208 | 423 |
| JSWm12H | 1" | 1" | 196 | 208 | 423 |
| JSWm15H | 1" | 1" | 208 | 235 | 505 |
| JSWm10M | 1" | 1" | 190 | 208 | 423 |
| JSWm15M | 1¼" | 1" | 208 | 235 | 505 |
