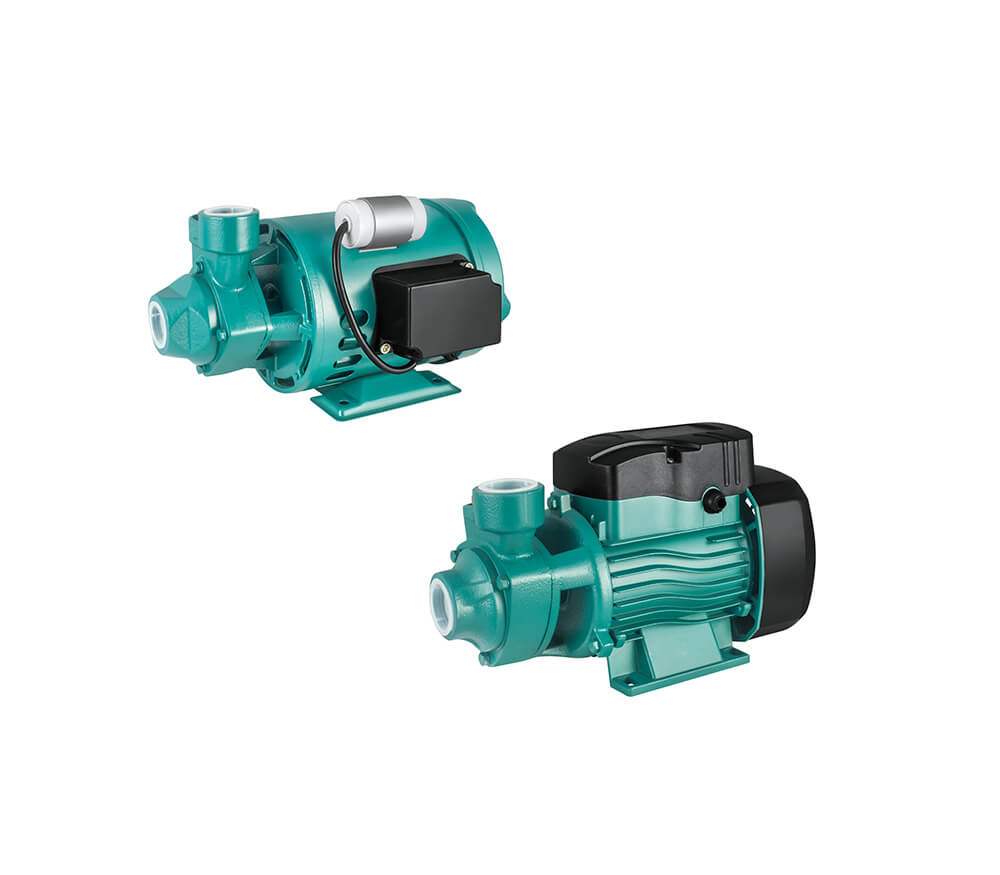

For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irrigation.
Maximum fluid temperature up to +40℃.
Maximum sand content:0.25%.
Rewindable motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
Special mechanical seal
Other voltages or frequency 60 Hz
(according to our general sales conditions).

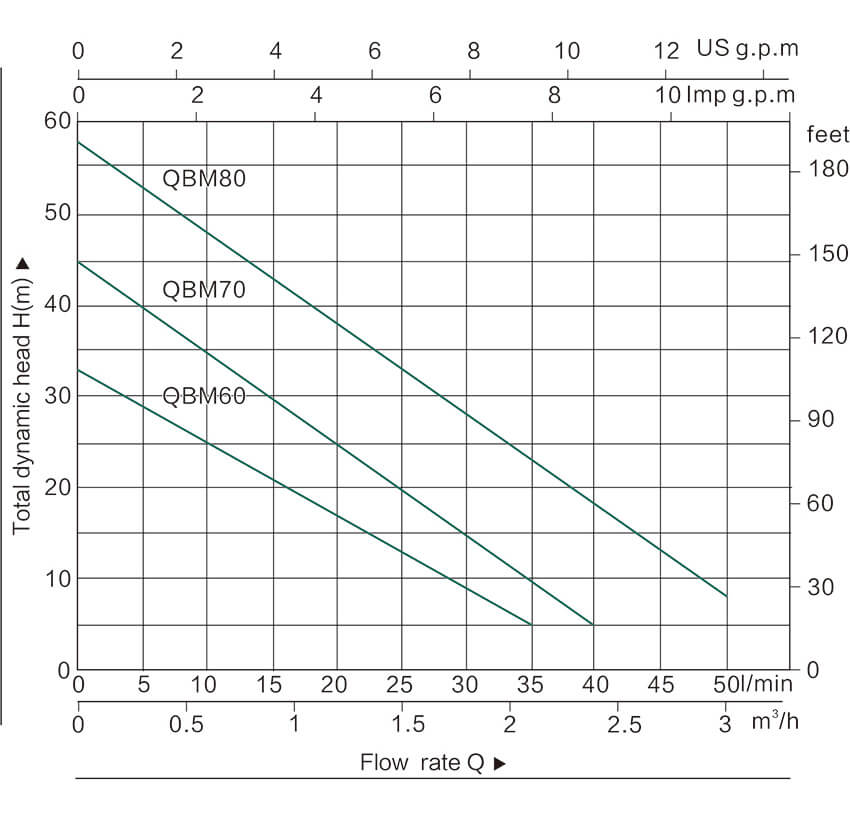

| MODEL | P₂ | DELIVERY n≈2850r/min | |||||||||||||
| 1~220V/240V | 3~380V/415V | KW | HP | Q(m³/h) | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.0 |
| Q(l/min) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | ||||
| QBM60 | QB60 | 0.37 | 0.5 | H(m) | 33 | 29 | 25 | 21 | 17 | 13 | 9 | 5 | - | - | - |
| QBM70 | QB70 | 0.55 | 0.75 | 45 | 40 | 35 | 30 | 25 | 20 | 15 | 10 | 5 | - | - | |
| QBM80 | QB80 | 0.75 | 1 | 58 | 53 | 48 | 43 | 38 | 33 | 28 | 23 | 18 | 13 | 8 | |

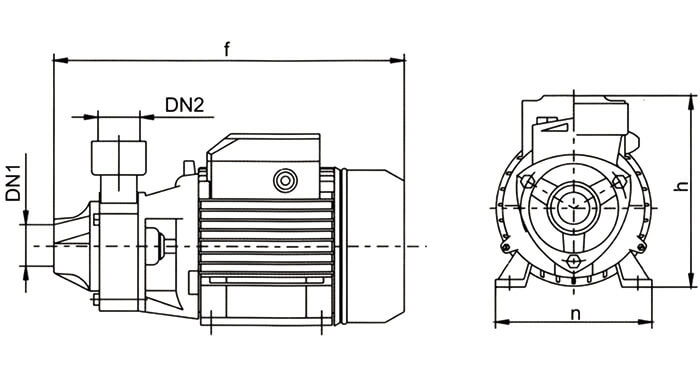

| MODEL | DN1 | DN2 | DIMENSIONS(mm) | ||
| n | h | f | |||
| QBM60 | 1" | 1" | 120 | 152 | 343 |
| QBM70 | 1" | 1" | 134 | 179 | 285 |
| QBM80 | 1" | 1" | 134 | 179 | 285 |

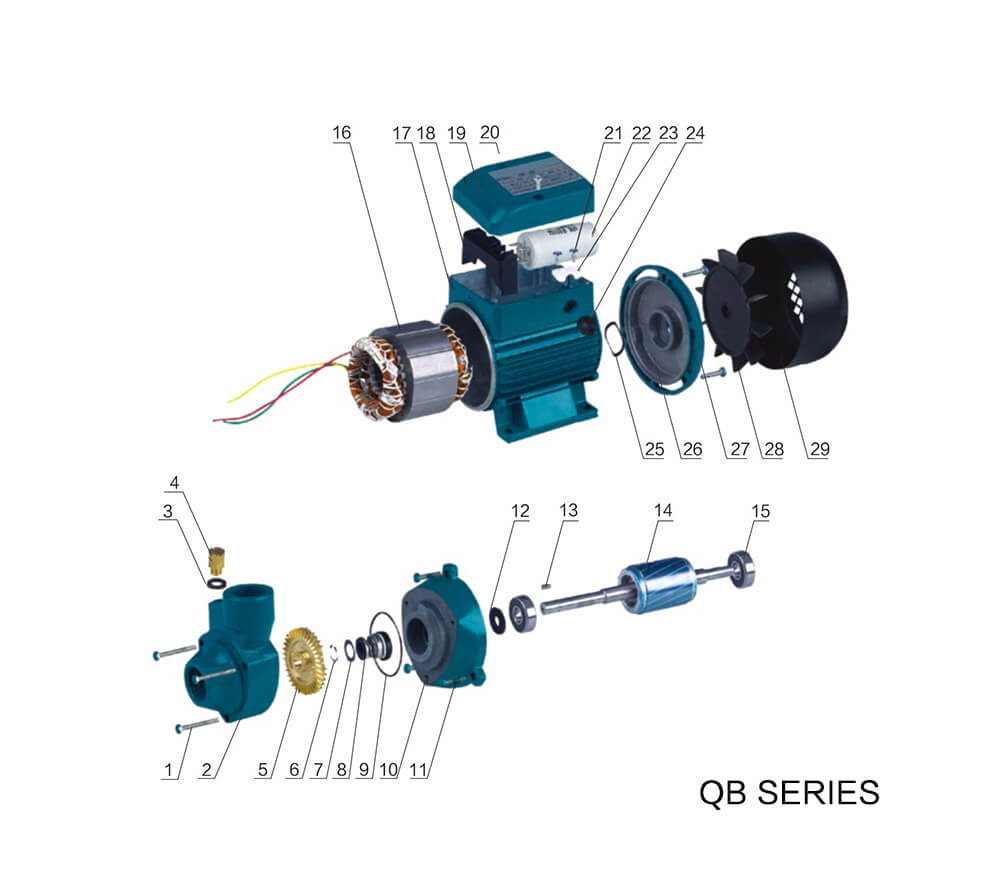

| NO. | DESCRIPTION | NO. | DESCRIPTION |
| 1 | Pump Body Screw | 16 | Stator |
| 2 | Pump Body | 17 | Motor Case |
| 3 | "O"ring For Filling Plug | 18 | Terminal Board |
| 4 | Filling Plug | 19 | Terminal Cover |
| 5 | Impeller | 20 | Screw For Terminal Box Fixing |
| 6 | Circlip | 21 | Screw For Cable Presser |
| 7 | Plain Washer | 22 | Capacitor |
| 8 | Mechanical Seal | 23 | Cable Presser |
| 9 | "O"Ring For Pump Body | 24 | Water Proof Fairlead |
| 10 | Motor Bracker | 25 | Adjusting Ring |
| 11 | Screw For Motor Bracker | 26 | Motor Cover |
| 12 | Splash Guard | 27 | Motor Cover-motor Case Screw |
| 13 | Key | 28 | Fan |
| 14 | Shaft And Rotor | 29 | Fan Cover |
| 15 | Ball Bearing |
