For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irrigation.
Maximum fluid temperature up to +40℃.
Maximum immersion:10m.
Rewindable motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
Equip with Floating switch as requirement
Special mechanical seal
Other voltages or frequency 60 Hz
(according to our general sales conditions).

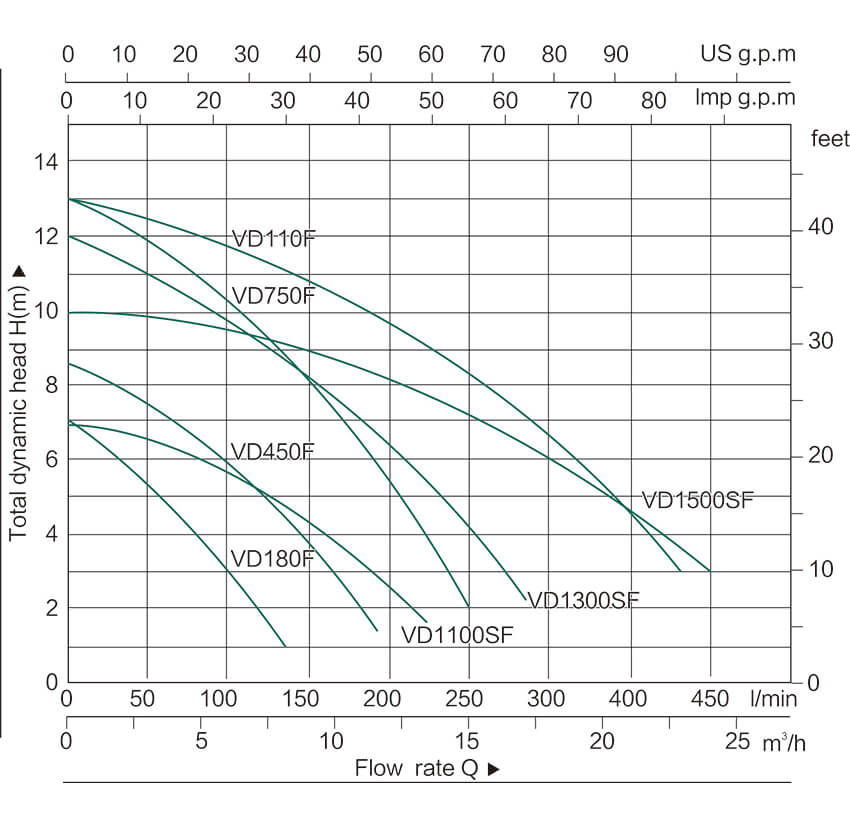

| MODEL | P₂ | Outlet (inch) |
Capacity (m³/h) |
Pump lift (m) |
N.W (kg) |
Packing dimension (mm) |
||
| 1~220V/240V | 3~380V/415V | KW | HP | |||||
| VD180F | - | 0.18 | 0.25 | 1¼" | 6 | 8 | 9.6 | 480×180×200 |
| VD450F | - | 0.45 | 0.6 | 2" | 14 | 8 | 17.5 | 470×200×270 |
| VD750F | - | 0.75 | 1.0 | 2" | 19 | 11 | 18.5 | 490×200×270 |
| VD1100F | V1100 | 1.1 | 1.5 | 2" | 20 | 13 | 19.2 | 580×320×260 |
| VD1100SF | V1100S | 1.1 | 1.5 | 2" | 17 | 10 | 19.5 | 580×320×260 |
| VD1300SF | V1300S | 1.3 | 1.8 | 2" | 20 | 13 | 22.4 | 540×310×260 |
| VD1500SF | V1500S | 1.5 | 2.0 | 2" | 21 | 14 | 23 | 540×310×260 |
