6SR 18/30/45
Deep Well Pumps

Application

For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irrigation.

Operating conditions

Maximum fluid temperature up to +35℃.
Maximum sand content:0.25%.
Maximum immersion:100m.
Minimum well diameter:6".

Motor and Pump

Rewindable motor or Full obturated screen motor
Three-phase:380V-415V/50Hz
①Direct start (1 cable)
②Star-delta start(2 cables)
Equip with start control box or digital auto-control box
NEMA dimension standards
Curve tolerance according to ISO 2548

Options on request

Special mechanical seal
Other voltages or frequency 60 Hz

Warranty:1 year

(according to our general sales conditions).

Parameter
Chart
Dimensions
Structure

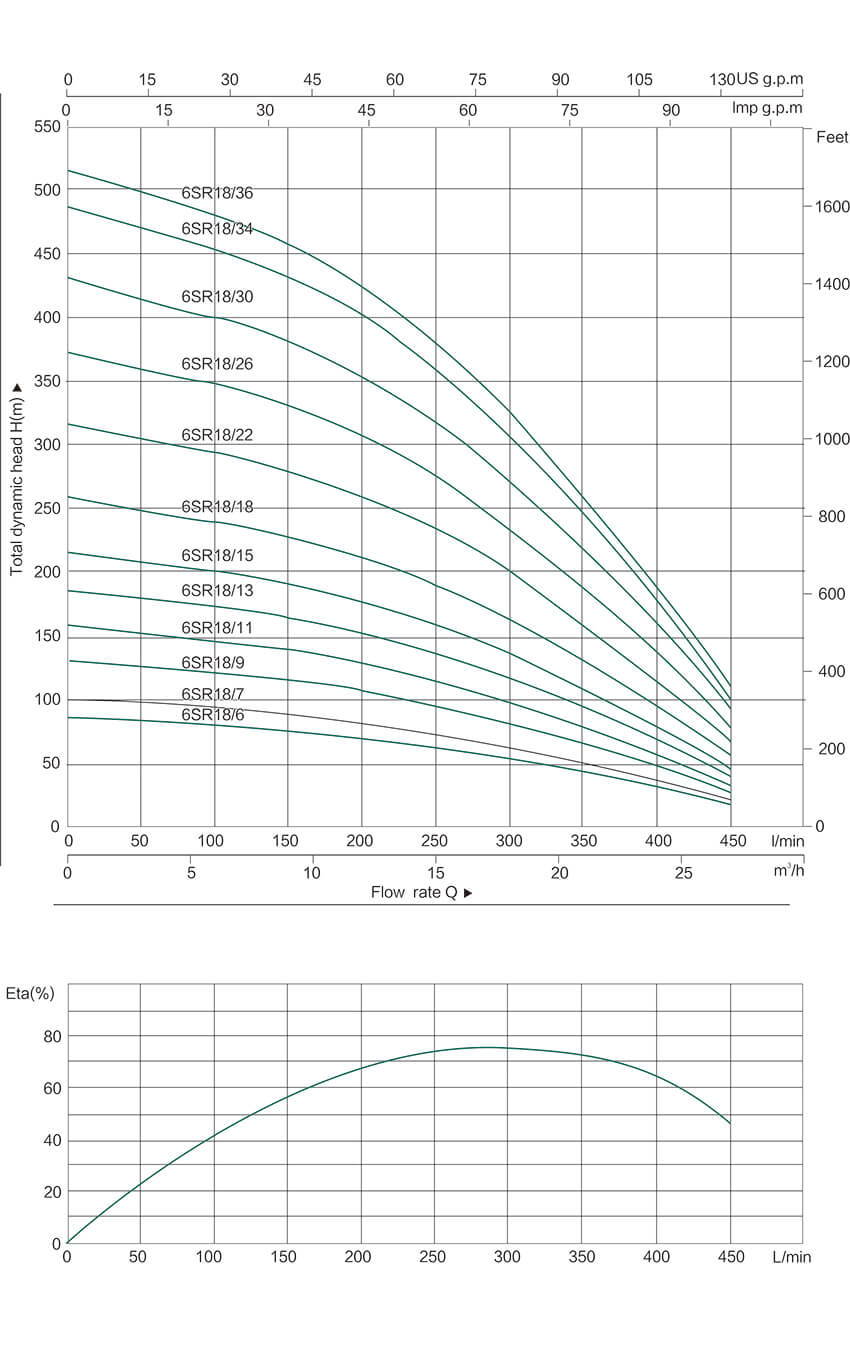

PERFORMANCE DATA 50Hz

MODEL P₂ DELIVERY                  n≈2850r/min
3~380V/415V KW HP Q(m³/h) 0 3 6 9 12 15 18 21 24 27
Q(l/min) 0 50 100 150 200 250 300 350 400 450
6SR18/6 5.5 7.5 H(m) 86 83 80 76 71 63 54 44 32 18
6SR18/7 5.5 7.5 101 97 94 89 83 74 64 51 37 21
6SR18/9 7.5 10 129 124 120 114 106 95 82 65 47 27
6SR18/11 9.2 12.5 158 152 147 140 130 116 110 80 58 33
6SR18/13 11 15 187 179 174 165 153 137 118 95 69 39
6SR18/15 13 17.5 215 207 200 191 177 158 136 109 79 45
6SR18/18 15 20 259 248 240 229 212 190 163 131 95 54
6SR18/22 18.5 25 316 304 294 280 260 232 200 160 116 66
6SR18/26 22 30 373 359 347 331 307 274 236 189 137 78
6SR18/30 26 35 431 414 401 382 354 317 272 218 158 90
6SR18/34 30 40 488 469 454 433 401 359 309 247 179 102
6SR18/36 30 40 517 497 481 458 425 380 327 262 190 108

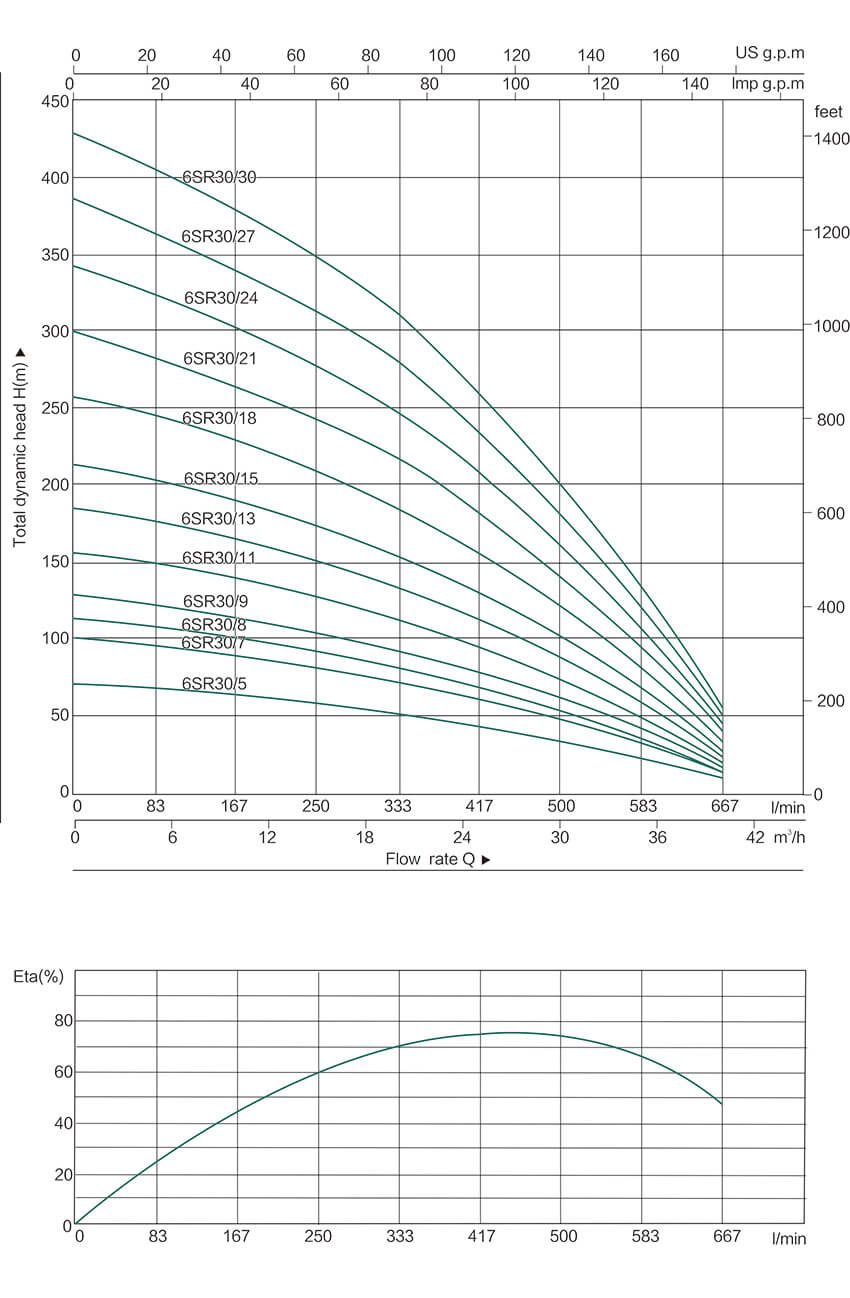

MODEL P₂ DELIVERY                  n≈2850r/min
3~380V/415V KW HP Q(m³/h) 0 5 10 15 20 25 30 35 40
Q(l/min) 0 83 167 250 333 417 500 583 667
6SR30/5 5.5 7.5 H(m) 71 67 63 58 52 44 34 22 9
6SR30/7 5.5 7.5 100 94 88 81 73 61 47 31 13
6SR30/8 7.5 10 114 108 101 93 83 70 54 36 14
6SR30/9 9.2 12.5 129 121 114 105 93 79 61 40 16
6SR30/11 11 15 157 148 139 128 114 96 74 49 20
6SR30/13 13 17.5 186 175 164 151 135 113 88 58 24
6SR30/15 15 20 214 202 189 175 156 131 102 67 27
6SR30/18 18.5 25 257 243 227 210 187 157 122 81 33
6SR30/21 22 30 300 283 265 244 218 183 142 94 38
6SR30/24 26 35 343 324 303 279 249 209 163 108 44
6SR30/27 30 40 386 364 341 314 280 236 183 121 49
6SR30/30 30 40 429 405 378 349 312 262 203 135 54

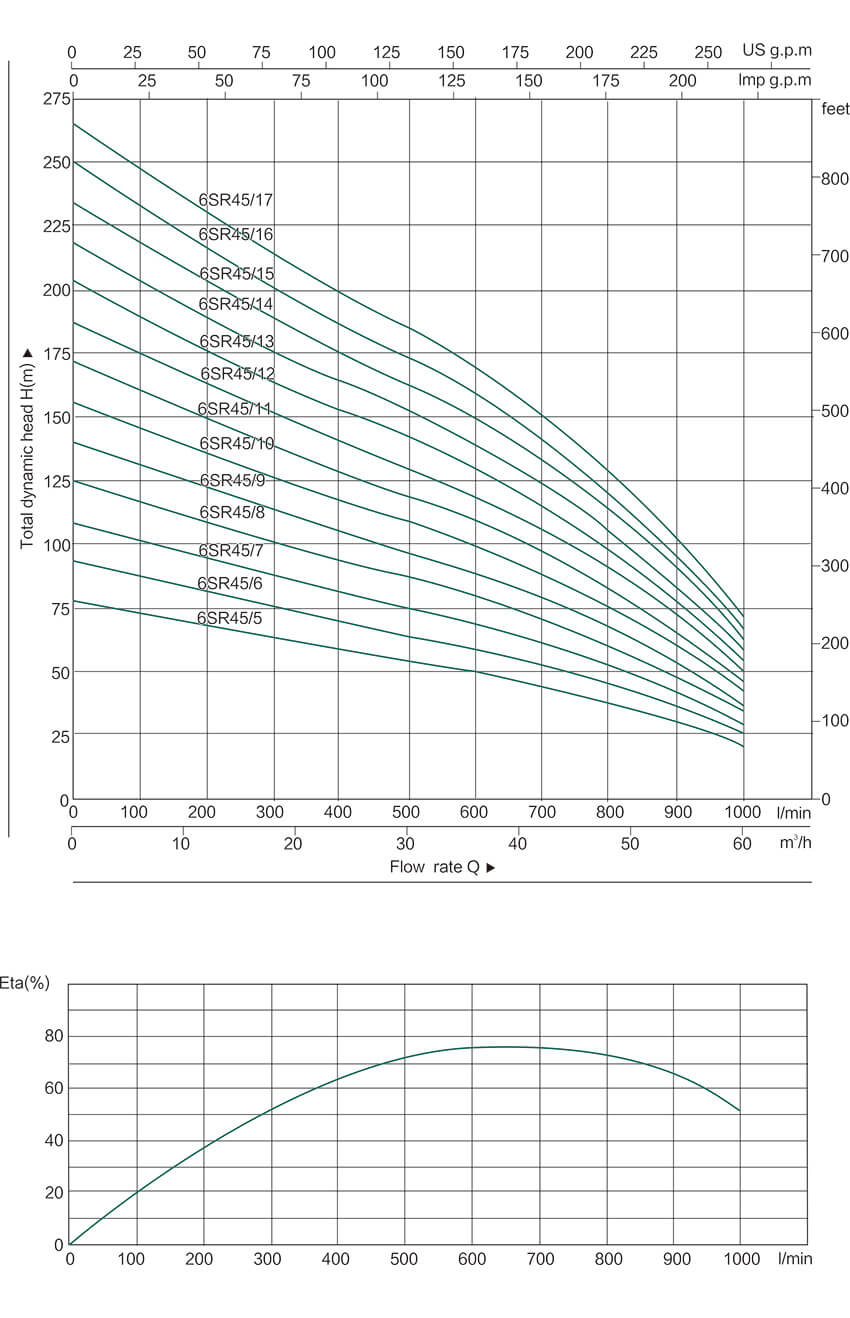

MODEL P₂ DELIVERY                  n≈2850r/min
3~380V/415V KW HP Q(m³/h) 0 6 12 18 24 30 36 42 48 54 60
Q(l/min) 0 100 200 300 400 500 600 700 800 900 1000
6SR45/5 7.5 10 H(m) 78 73 68 63 59 54 50 44 38 30 21
6SR45/6 9.2 12.5 94 87 81 76 70 65 60 53 46 36 25
6SR45/7 11 15 110 102 95 88 82 76 70 62 53 42 29
6SR45/8 13 17.5 125 116 108 101 94 87 80 71 61 48 33
6SR45/9 15 20 141 131 122 113 105 98 89 80 68 54 38
6SR45/10 18.5 25 156 145 135 126 117 109 99 89 76 60 42
6SR45/11 18.5 25 172 160 149 138 129 120 109 98 83 66 46
6SR45/12 22 30 188 174 162 151 140 131 119 107 91 72 50
6SR45/13 22 30 203 189 176 164 152 141 129 115 99 78 54
6SR45/14 26 35 219 203 189 176 164 152 139 124 106 84 58
6SR45/15 26 35 235 218 203 189 176 163 149 133 114 90 63
6SR45/16 30 40 250 232 216 201 187 174 159 142 121 96 67
6SR45/17 30 40 266 247 230 214 199 185 169 151 129 102 71

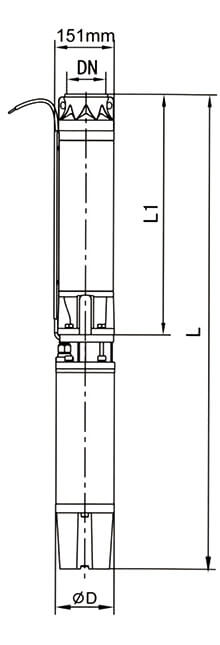

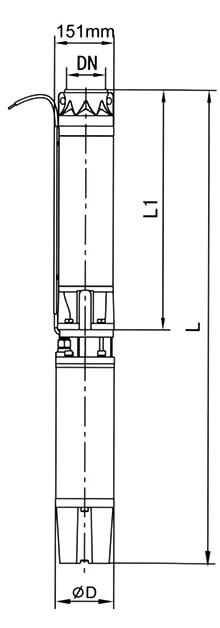

MODEL P₂ DN DIMENSIONS(mm) WEIGHT(kg)
3~380V/415V KW HP 2½"/3" L1 L ΦD Pump Total
6SR18/6 5.5 7.5 2½"/3" 670 1286 140 16 62
6SR18/7 5.5 7.5 2½"/3" 715 1331 140 17 63
6SR18/9 7.5 10 2½"/3" 805 1471 140 19 68
6SR18/11 9.2 12.5 2½"/3" 894 1610 140 21 73
6SR18/13 11 15 2½"/3" 984 1770 140 22 81
6SR18/15 13 17.5 2½"/3" 1074 1910 140 24 86
6SR18/18 15 20 2½"/3" 1209 2095 140 27 93
6SR18/22 18.5 25 2½"/3" 1388 2299 140 30 101
6SR18/26 22 30 2½"/3" 1568 2554 140 34 113
6SR18/30 26 35 2½"/3" 1748 2809 140 37 121
6SR18/34 30 40 2½"/3" 1927 3063 140 41 133
6SR18/36 30 40 2½"/3" 2017 3153 140 42 134





MODEL P₂ DN DIMENSIONS(mm) WEIGHT(kg)
3~380V/415V KW HP 3"/4" L1 L ΦD Pump Total
6SR30/5 5.5 7.5 3"/4" 670 1286 140 16 62
6SR30/7 7.5 10 3"/4" 779 1444 140 18 67
6SR30/8 7.5 10 3"/4" 833 1478 140 19 68
6SR30/9 9.2 12.5 3"/4" 886 1602 140 20 72
6SR30/11 11 15 3"/4" 993 1779 140 22 81
6SR30/13 13 17.5 3"/4" 1101 1937 140 24 86
6SR30/15 15 20 3"/4" 1209 2095 140 26 92
6SR30/18 18.5 25 3"/4" 1371 2282 145 29 100
6SR30/21 22 30 3"/4" 1532 2518 145 32 111
6SR30/24 26 35 3"/4" 1694 2755 145 35 119
6SR30/27 30 40 3"/4" 1856 2992 145 38 130
6SR30/30 30 40 3"/4" 2018 3154 145 41 133





MODEL P₂ DN DIMENSIONS(mm) WEIGHT(kg)
3~380V/415V KW HP 3"/4" L1 L ΦD Pump Total
6SR45/5 7.5 10 3"/4" 735 1401 140 17 66
6SR45/6 9.2 12.5 3"/4" 802 1518 140 18 70
6SR45/7 11 15 3"/4" 869 1655 140 20 79
6SR45/8 13 17.5 3"/4" 936 1772 140 21 83
6SR45/9 15 20 3"/4" 1003 1889 140 22 88
6SR45/10 18.5 25 3"/4" 1070 1981 140 23 94
6SR45/11 18.5 25 3"/4" 1136 2047 140 25 96
6SR45/12 22 30 3"/4" 1203 2189 145 26 105
6SR45/13 22 30 3"/4" 1270 2331 145 27 111
6SR45/14 26 35 3"/4" 1337 2398 145 28 112
6SR45/15 26 35 3"/4" 1404 2540 145 30 122
6SR45/16 30 40 3"/4" 1471 2607 145 31 123
6SR45/17 30 40 3"/4" 1538 2674 145 32 124



Components Material
Pump external casing AISI 304 SS
Delivery casing Cast-iron G20 UNI5007
Suction lantern Cast-iron G20 UNI5007
Diffuser Plastic.PC/AISI 304 SS
Impeller ① Plastic.POM ② Plastic.PPO
Shaft ① AISI 316 SS ② AISI 304 SS
Shaft coupling ① AISI 316 SS ② AISI 304 SS
Wrar ring AISI 304 SS
Motor external casing AISI 304 SS
Top chock ① Cast-iron G20 UNI5007 ② AISI 304 SS
Bottom support ① Cast-iron G20 UNI5007 ② AISI 304 SS
Seal ① NBR ②Carbon-SIC/TC
Shaft AISI 304 SS-C1045
Thrust bearing ① Ceramic/Carbon ② NSK
Radial bearing ① Ceramic/TC ② NSK
