Deep Well Pumps

Application

For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irrigation.

Operating conditions

Maximum fluid temperature up to +35℃.
Maximum sand content:0.25%.
Maximum immersion:80m.
Minimum well diameter:3.5".

Motor and Pump

Rewindable motor or Full obturated screen motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
Pumps are designed by casing stressed
Curve tolerance according to ISO 2548

Options on request

Special mechanical seal
Other voltages or frequency 60 Hz

Warranty:1 year

(according to our general sales conditions).

Parameter
Chart
Dimensions
Structure

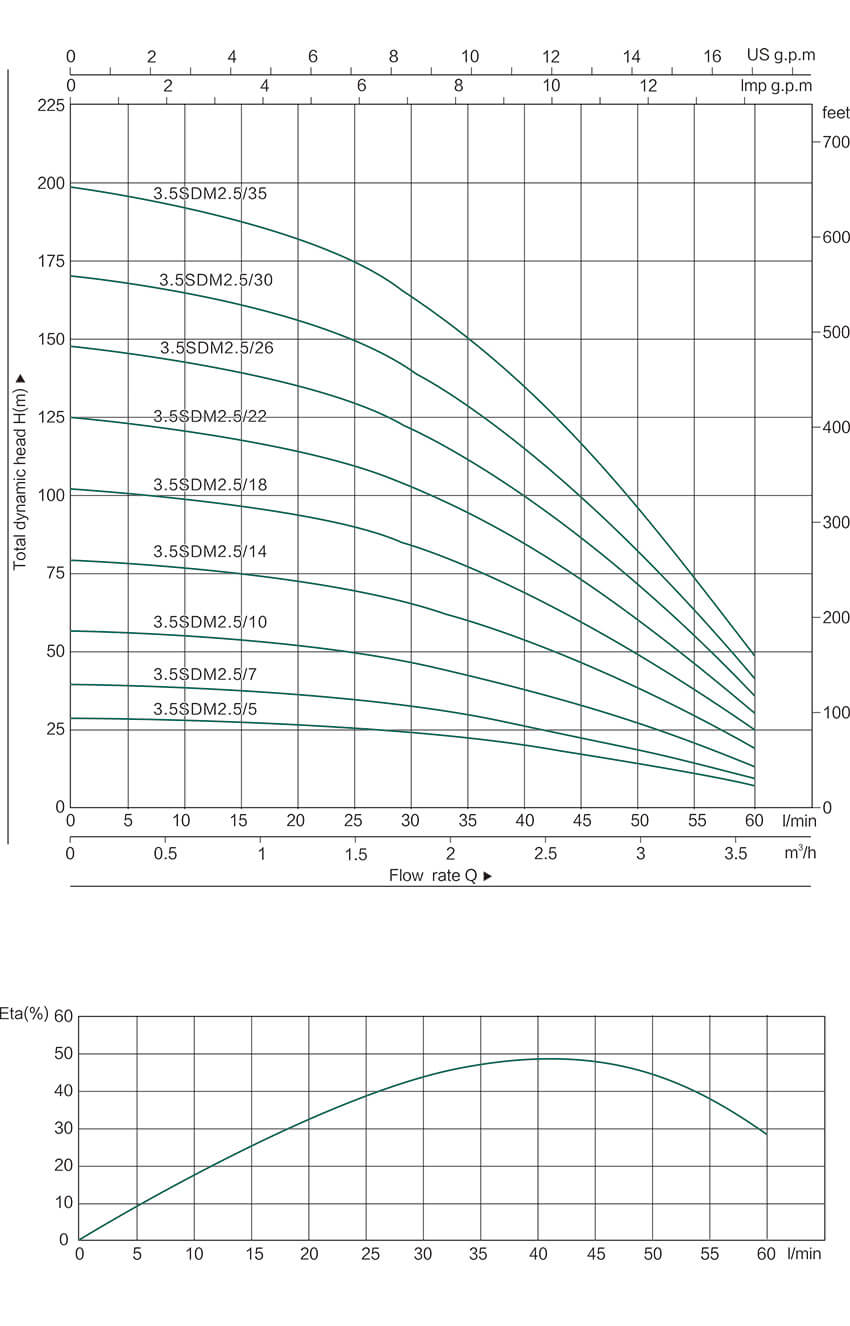

PERFORMANCE DATA 50Hz

MODEL P₂ DELIVERY                  n≈2850r/min
1~220V/240V 3~380V/415V KW HP Q(m³/h) 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.0 3.3 3.6
Q(l/min) 0 5 10 15 20 25 30 35 40 45 50 55 60
3.5SDM2.5/5 3.5SD2.5/5 0.18 0.25 H(m) 28 28 27 27 26 25 23 21 19 17 14 10 7
3.5SDM2.5/7 3.5SD2.5/7 0.25 0.33 40 39 38 38 36 35 33 30 27 23 19 14 10
3.5SDM2.5/10 3.5SD2.5/10 0.37 0.5 57 56 55 54 52 50 47 43 38 33 27 21 14
3.5SDM2.5/14 3.5SD2.5/14 0.55 0.75 80 78 77 75 73 70 65 60 54 46 38 29 20
3.5SDM2.5/18 3.5SD2.5/18 0.75 1 102 101 99 97 94 89 84 77 69 60 49 37 25
3.5SDM2.5/22 3.5SD2.5/22 1.1 1.5 125 123 121 118 114 109 102 94 84 73 60 45 31
3.5SDM2.5/26 3.5SD2.5/26 1.1 1.5 148 146 143 140 135 129 121 111 100 86 71 53 36
3.5SDM2.5/30 3.5SD2.5/30 1.5 2 171 168 165 161 156 149 140 129 115 99 81 62 42
3.5SDM2.5/35 3.5SD2.5/35 1.5 2 199 196 192 188 182 174 163 150 134 116 95 72 49

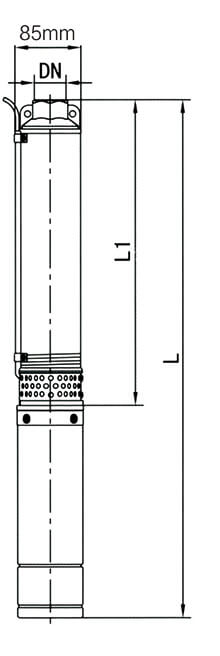

MODEL DN DIMENSIONS(mm) WEIGHT(kg)
1~220V/240V 3~380V/415V L1 L(S) L(T) G(S) G(T)
3.5SDM2.5/5 3.5SD2.5/5 1¼" 337 606 596 8 7
3.5SDM2.5/7 3.5SD2.5/7 1¼" 383 662 680 9 9
3.5SDM2.5/10 3.5SD2.5/10 1¼" 452 757 749 11 10
3.5SDM2.5/14 3.5SD2.5/14 1¼" 544 874 856 12 11
3.5SDM2.5/18 3.5SD2.5/18 1¼" 637 991 964 13 12
3.5SDM2.5/22 3.5SD2.5/22 1¼" 761 1160 1108 16 14
3.5SDM2.5/26 3.5SD2.5/26 1¼" 853 1253 1200 16 14
3.5SDM2.5/30 3.5SD2.5/30 1¼" 946 1390 1323 19 16
3.5SDM2.5/35 3.5SD2.5/35 1¼" 1061 1506 1438 20 17



Components Material
Pump external casing AISI 304 SS
Delivery casing Cast-Cu ASTM280
Suction lantern Cast-Cu ASTM280
Diffuser Plastic.PC
Impeller Plastic.POM
Shaft ① AISI 316 SS ② AISI 304 SS
Shaft coupling ① AISI 316 SS ② AISI 304 SS
Wear ring AISI 304 SS
Motor external casing AISI 304 SS
Top chock Cast-Cu ASTM280
Bottom support AISI 304 SS
Mechanical seal Special seal for deep well(carbon-SIC/TC)
Shaft AISI 304 SS-C1045
Bearing NSK
Seal lubricant oil Oil for food machinery and pharmaceutic use.
