For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irrigation.
Maximum fluid temperature up to +35℃.
Maximum sand content:0.25%.
Maximum immersion:80m.
Minimum well diameter:3".
Rewindable motor or Full obturated screen motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
Pumps are designed by casing stressed
Curve tolerance according to ISO 2548
Equip digital auto-control box
Special mechanical seal
Other voltages or frequency 60 Hz
(according to our general sales conditions).

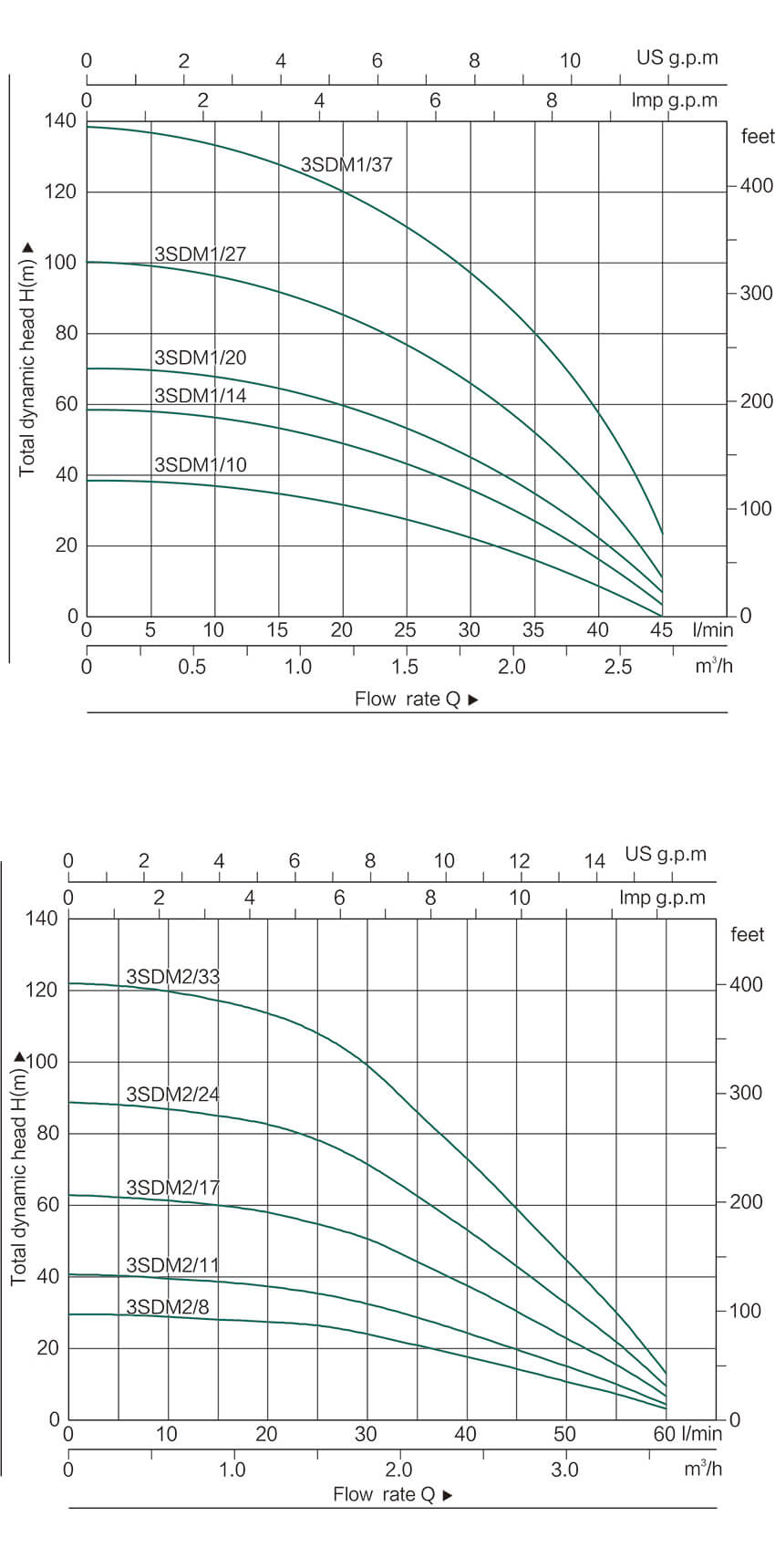

| MODEL | P₂ | DELIVERY n≈2850r/min | |||||||||||||||
| 1~220V/240V | 3~380V/415V | KW | HP | Q(m³/h) | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 |
| Q(l/min) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | ||||
| 3SDM1/10 | 3SD1/10 | 0.25 | 0.33 | H(m) | 37 | 37 | 36 | 35 | 32 | 30 | 26 | 22 | 15 | 6 | - | - | - |
| 3SDM1/14 | 3SD1/14 | 0.37 | 0.5 | 52 | 52 | 50 | 48 | 45 | 42 | 37 | 30 | 22 | 9 | - | - | - | |
| 3SDM1/20 | 3SD1/20 | 0.55 | 0.75 | 75 | 74 | 72 | 69 | 65 | 59 | 52 | 43 | 31 | 12 | - | - | - | |
| 3SDM1/27 | 3SD1/27 | 0.75 | 1.0 | 101 | 100 | 97 | 93 | 88 | 80 | 71 | 58 | 42 | 17 | - | - | - | |
| 3SDM1/37 | 3SD1/37 | 1.1 | 1.5 | 138 | 137 | 133 | 128 | 120 | 110 | 97 | 80 | 57 | 23 | - | - | - | |
| 3SDM2/8 | 3SD2/8 | 0.25 | 0.33 | 30 | 29 | 29 | 28 | 28 | 26 | 24 | 21 | 18 | 14 | 11 | 7 | 3 | |
| 3SDM2/11 | 3SD2/11 | 0.37 | 0.5 | 41 | 40 | 40 | 39 | 38 | 36 | 33 | 29 | 24 | 20 | 15 | 10 | 4 | |
| 3SDM2/17 | 3SD2/17 | 0.55 | 0.75 | 63 | 62 | 62 | 60 | 59 | 56 | 51 | 44 | 38 | 30 | 23 | 15 | 7 | |
| 3SDM2/24 | 3SD2/24 | 0.75 | 1.0 | 89 | 88 | 87 | 85 | 83 | 79 | 72 | 63 | 53 | 43 | 33 | 22 | 9 | |
| 3SDM2/33 | 3SD2/33 | 1.1 | 1.5 | 122 | 121 | 120 | 117 | 114 | 108 | 99 | 86 | 73 | 59 | 45 | 30 | 13 | |

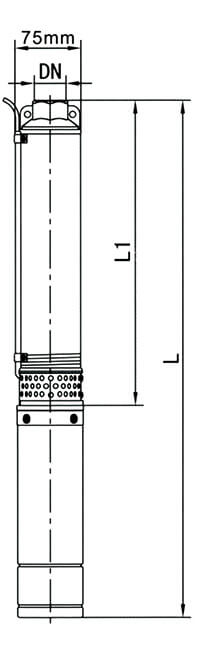

| MODEL | DN | DIMENSIONS(mm) | WEIGHT(kg) | ||||
| 1~220V/240V | 3~380V/415V | L1 | L(S) | L(T) | G(S) | G(T) | |
| 3SDM1/10 | 3SD1/10 | 1" | 430 | 715 | 705 | 6.5 | 6 |
| 3SDM1/14 | 3SD1/14 | 1" | 528 | 843 | 833 | 8 | 7.5 |
| 3SDM1/20 | 3SD1/20 | 1" | 703 | 1058 | 1048 | 9 | 8.5 |
| 3SDM1/27 | 3SD1/27 | 1" | 877 | 1272 | 1252 | 11 | 10 |
| 3SDM1/37 | 3SD1/37 | 1" | 1150 | 1620 | 1595 | 13 | 12 |
| 3SDM2/8 | 3SD2/8 | 1" | 396 | 681 | 671 | 6.5 | 6 |
| 3SDM2/11 | 3SD2/11 | 1" | 476 | 791 | 781 | 8 | 7.5 |
| 3SDM2/17 | 3SD2/17 | 1" | 673 | 992 | 928 | 9 | 8.5 |
| 3SDM2/24 | 3SD2/24 | 1" | 851 | 1246 | 1226 | 11 | 10 |
| 3SDM2/33 | 3SD2/33 | 1" | 1117 | 1587 | 1562 | 13 | 12 |
| Components | Material |
| Pump external casing | AISI 304 SS |
| Delivery casing | Cast-Cu ASTM280 |
| Suction lantern | Cast-Cu ASTM280 |
| Diffuser | Plastic.PC |
| Impeller | Plastic.POM |
| Shaft | ① AISI 316 SS ② AISI 304 SS |
| Shaft coupling | ① AISI 316 SS ② AISI 304 SS |
| Wear ring | AISI 304 SS |
| Motor external casing | AISI 304 SS |
| Top cover | Cast-Cu ASTM280 |
| Bottom support | AISI 304 SS |
| Mechanical seal | Special seal for deep well(carbon-SIC/TC) |
| Shaft | AISI 304 SS-C1045 |
| Bearing | NSK |
| Seal lubricant oil | Oil for food machinery and pharmaceutic use. |
